$54
VM1-Opto/Relay
Description:
The VM1 Opto/Relay Module is designed for use with our Socket Board. Source code for demo is provided with purchase.
Features:
- 4 Opto inputs with user configurable jumpers for level input control.
- 4 Form C relays with 2A contacts.
- Web site Configurable to operate manually from web browser or set to operate Automatically.
- On board LEDs to show status of Optos and relays.
- Quick disconnect plugs.
- Board size 1.92” x 2.77”
Documentation:
- VM1 Pinout Reference
- VM1 Schematic
- VM1 Top Reference
- VM1 Bottom Reference
- VM1 to Socket Board Connections
- VM1 Demonstration Video

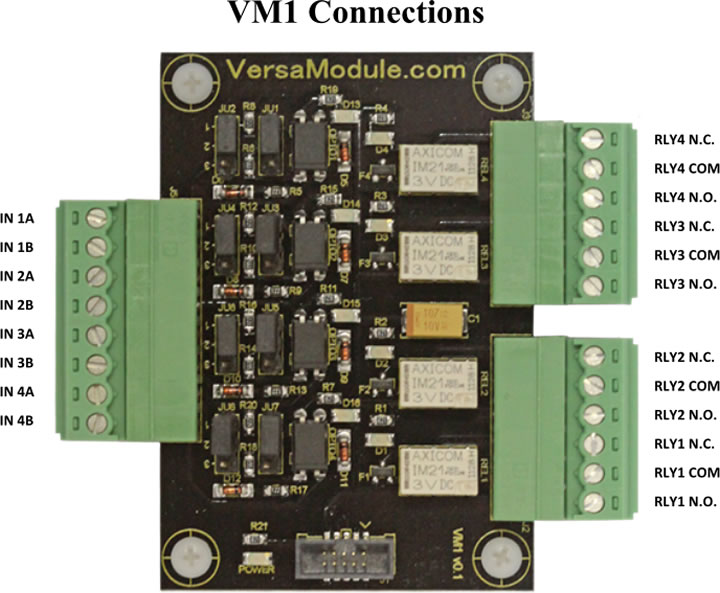

Pinout Quick Reference
