$30
VMA-2.8” LCD
Description:

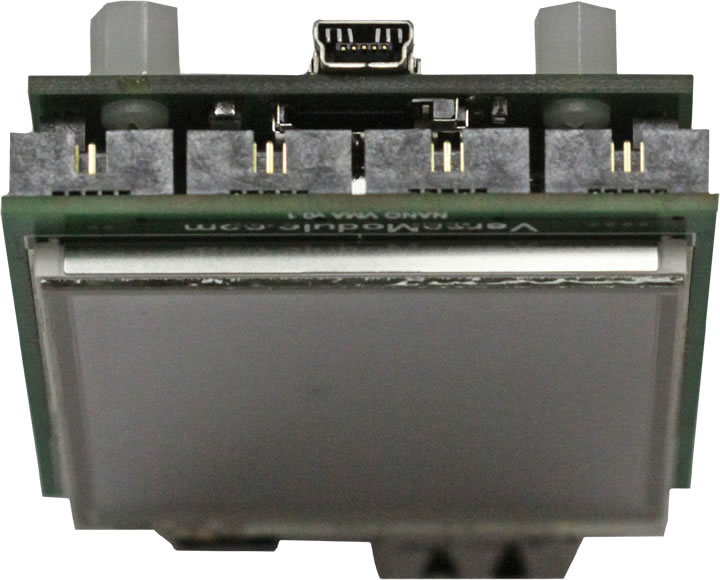

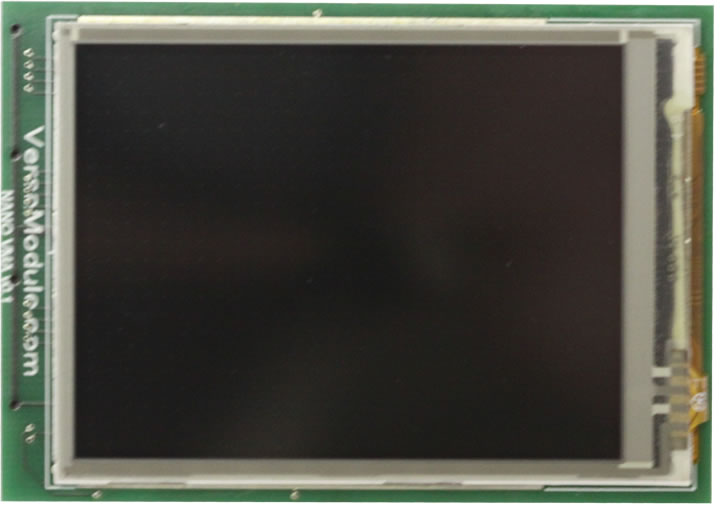

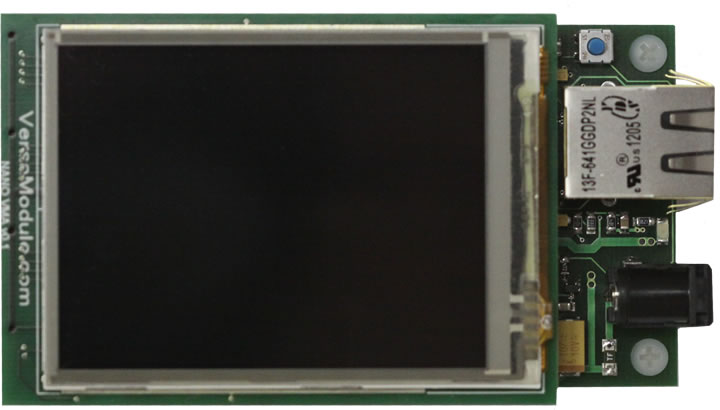

The VMA 2.8” Color LCD Module mounts to our VMO Mainboard.
The VMA can be used in either Landscape or Portrait modes. The included software contains both versions for you to use. There are 4 ten pin keyed sockets on the rear of the board to allow you to connect other sensors or modules you design. Most of the Nano54415 I/O signals are brought to these headers. Source code for demo is provided with purchase.
Features:
- 320×240 Resolution Color LCD
- Touch Screen
- Internal Himax HX8347D LCD controller
- Can be used in either Landscape or Portrait modes

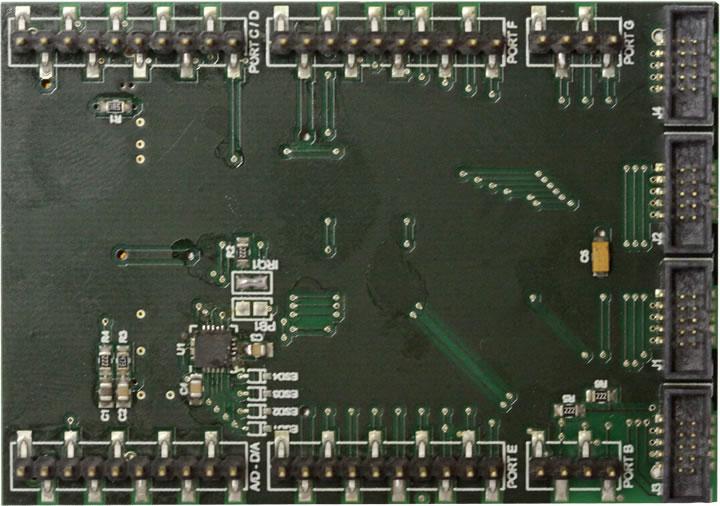

- 4 ten pin keyed sockets on board to gain access to the Nano54415 I/O pins
- LED backlight
- 3.07” x 2.16” board size
Documentation:
- VMA Schematic
- VMA Board Dimensions
- VMA Bottom Silk Reference
- Touch Screen Data Sheet
- VMA Demonstration Video
- VMA Full Size Keyboard Video
- VMGraphix Software Demo Videos
